Fan and Pad Polyhouse

The Fan Pad Poly House is a technologically advanced greenhouse structure designed for precision farming, enabling controlled environment agriculture (CEA) for high-value crops. Equipped with a dynamic fan and pad cooling system, this poly house creates a temperature- and humidity-regulated microclimate, offering ideal growing conditions even in extreme external weather. Whether you're cultivating exotic vegetables, flowers, fruits, or nursery plants, the fan pad polyhouse boosts productivity, quality, and profitability.
Suitable for small, medium, and commercial-scale farming, this structure is engineered to meet the needs of modern horticulture. Its scientifically designed ventilation, light control, and irrigation compatibility make it ideal for hydroponics, floriculture, and organic farming.
Key Features & Components:

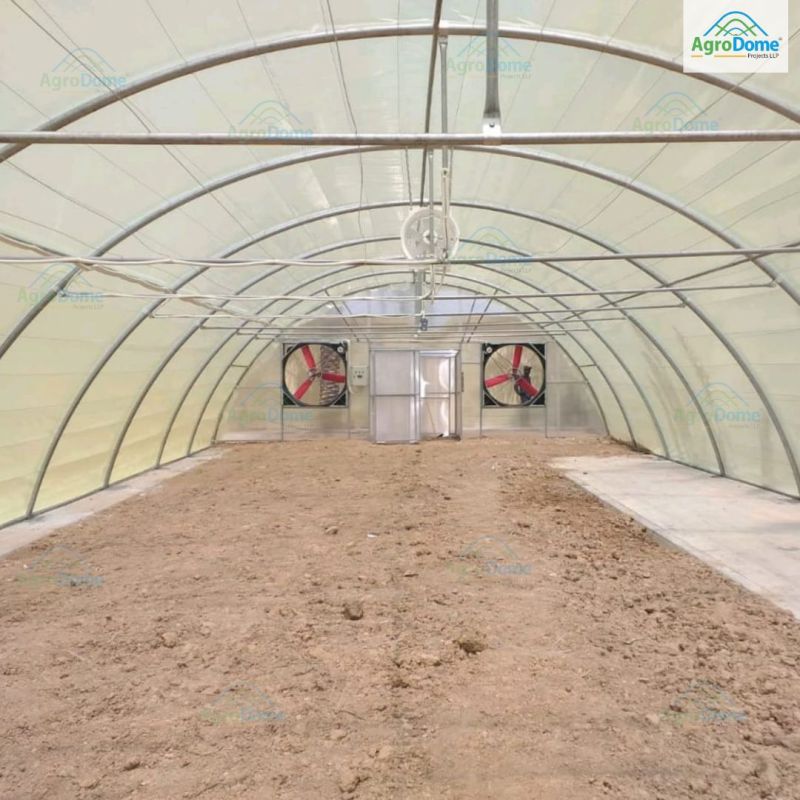

1. Fan and Pad Cooling System- Axial exhaust fans installed on one side of the structure draw out hot air. Cellulose cooling pads, mounted on the opposite side, pull in fresh air cooled by water flow. Creates a cross-ventilation effect, ideal for temperature-sensitive crops. Efficient cooling even during hot summer months.
2. UV-Stabilized Polyfilm- 200-micron polyethylene film with UV stabilization for enhanced durability. Resistant to tear, wind, and climatic stress. Optional anti-drip, anti-dust, and IR additive coatings available.
3. Heavy-Duty Galvanized Frame- Rust-free GI structure with superior load-bearing capacity. Options for hot-dip galvanized or pre-galvanized pipes (275 GSM – 450 GSM). Bolt-nut assembly ensures easy dismantling and reinstallation.
4. Motorized Roll-Up Curtains- Provides flexible control over ventilation and humidity. Available in manual, semi-automatic, or fully motorized options. Curtains made with high-density UV-stabilized net or polyfilm.
5. Drainage & Gutter System- Integrated rainwater gutter channels with slope management. Water can be directed for reuse in irrigation or collection tanks.
Applications:
The Fan Pad Poly House is suitable for:
Exotic Vegetables – Capsicum, Lettuce, Broccoli, Zucchini, Celery.
Cut Flowers – Gerbera, Rose, Carnation, Lilium.
Fruits – Strawberry, Blueberry, Melon varieties.
Seedling Nurseries – Tissue culture plants, saplings.
Hydroponic Farming – NFT, DWC, and Dutch bucket systems.
Research & Training – Agri-tech institutes, universities.
Organic Farming – High-value pesticide-free crops.
Advantages of Fan Pad Poly House:
1. Higher Yield- Up to 3–5 times more production per square meter compared to open-field farming due to optimal growing conditions.
2. Climate Adaptability- Can grow temperature-sensitive crops in any season, even in extreme summers or winters.
3. Enhanced Quality- Produces uniform, disease-free, and export-quality crops. Reduces pest infestation drastically.
4. Water Efficiency- Works well with drip irrigation, foggers, and fertigation systems, reducing water use by up to 70%.
5. Extended Crop Cycles- Supports year-round cultivation, enabling multiple harvests and higher profits.
6. Pest & Disease Control- Controlled environment reduces external contamination and allows use of biological control methods.
